JACK PANELS
TT96 EDAC SERIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

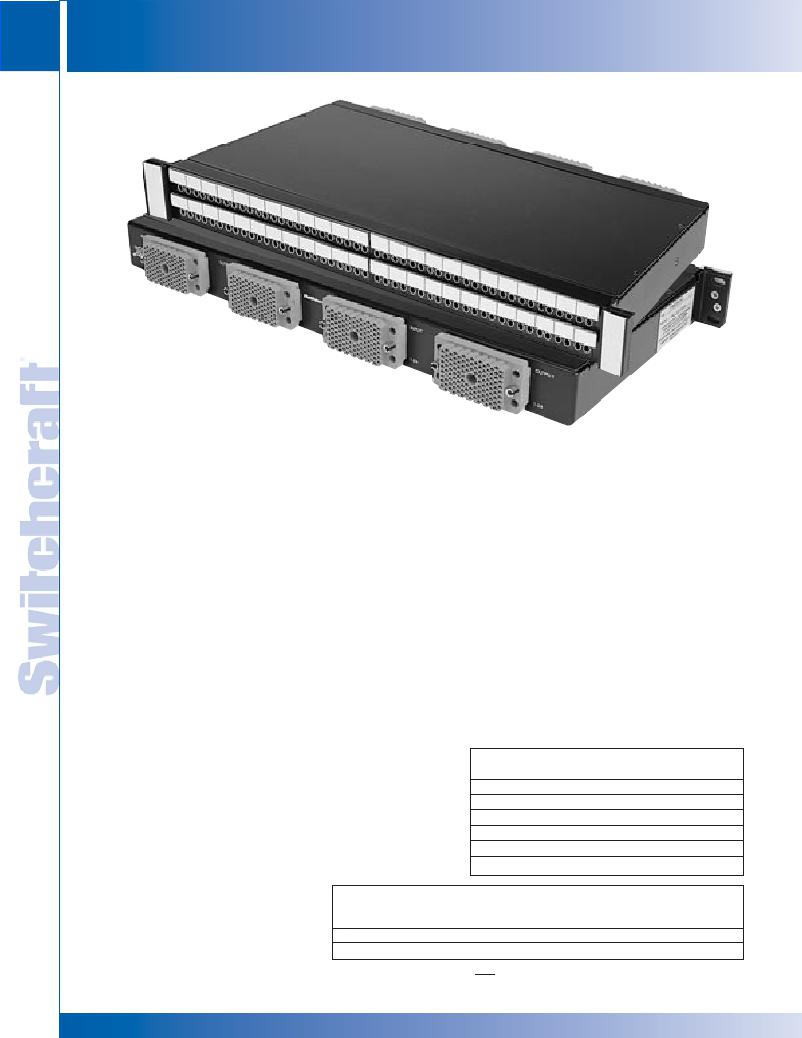

TT96 EDAC SERIES
TT96EDACNS
The TT96EDAC Series offers the convenience of EDAC ? connectors on
the back of the panel for easy installation. Available in normals strapped
and normals brought out, both wired to the SAC code of wiring. We also
offer custom wiring configurations. Contact the factory for details.
FEATURES AND BENEFITS
? Attractive, corrosion-resistant, nickel-plated jacks
? Steel frame jacks for superior jack life
? Extra wide labeling strips provide maximum space
and two vertical strips, one at each side
? Rugged, attractive black anodized
aluminum face will not break
? Two configurations available:
- Normals brought out
- Normalled at jacks
? Gold switching contacts for long-term reliability
? Jacks paired for easy identification of left and
right channels
? Connectorized by EDAC ? connectors for ease of
termination by customer
SPECIFICATIONS
MATERIALS
JACKS
EDAC CONNECTOR
Housing: Thermoplastic, UL94V-0
Contacts: Gold plated phosphor bronze
MECHANICAL
Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Operating: -20°C to +65°C
ELECTRICAL
Contact Resistance: 30 milliohms maximum initial
Insulation Resistance: 10,000 megohms
Dielectric Withstanding Voltage: 500VAC at 60 Hz
Working Voltage: 140VDC
Current Rating: 100 milliamps
Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs:
Nickel silver with welded contacts
Assembly Screws: Zinc-plated steel
Welded Contacts: Gold alloy
PANEL
Front Channel: Black anodized aluminum
EDAC Mating Plugs
Part Number
516-090-000-301
516-090-000-302
516-120-000-101
516-120-000-102
516-290-500
516-290-590
Description
90 Pin male w/screw
90 Pin male w/nut
120 Pin male w/screw
120 Pin male w/nut
Terminal solder-style
Terminal crimp-style
Frame & Cover: C.R.S. black epoxy painted
Designation Strips: Black
polycarbonate 94V-0
Designation Strip Covers: Clear
polycarbonate
Jack Inserts: Polyester
Ordering Information
Part Type of
Number Jack
TT96EDACNO TT
TT96EDACNS TT
No. of
Jacks
96
96
Description
Normals Brought Out (120 pin EDAC)
Normals Strapped (90 pin EDAC)
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
